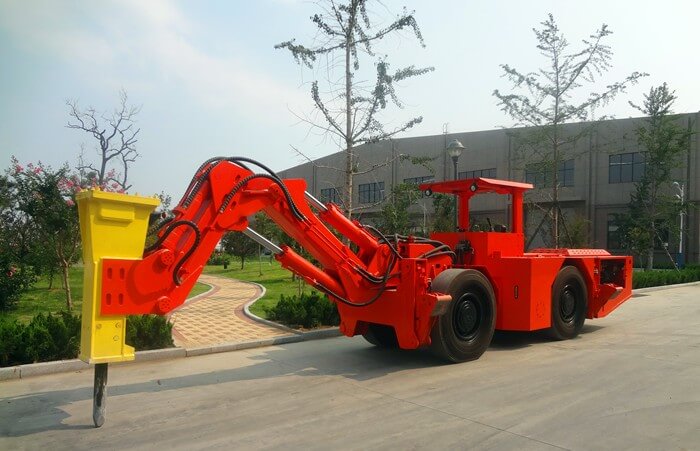

1.jpg "SJ-500 Diesel Mobile Rock Splitter")
SJ-500 diesel mobile rock splitter is widely used in various mines and tunnel construction projects to split large stones. It is especially suitable for underground mine operation. The frames are articulated with large steering angle and flexible steering. The energy consumption is low and the transmission efficiency is high.
Chat With Us
Leave Message

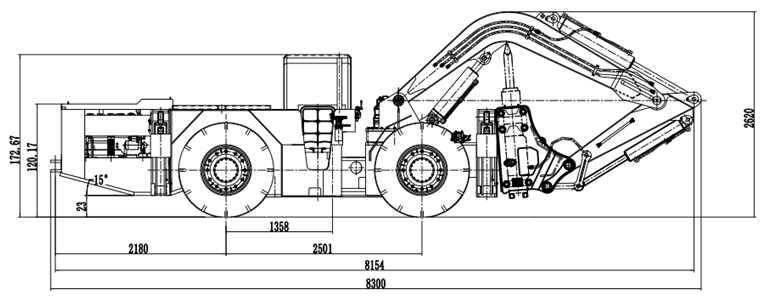

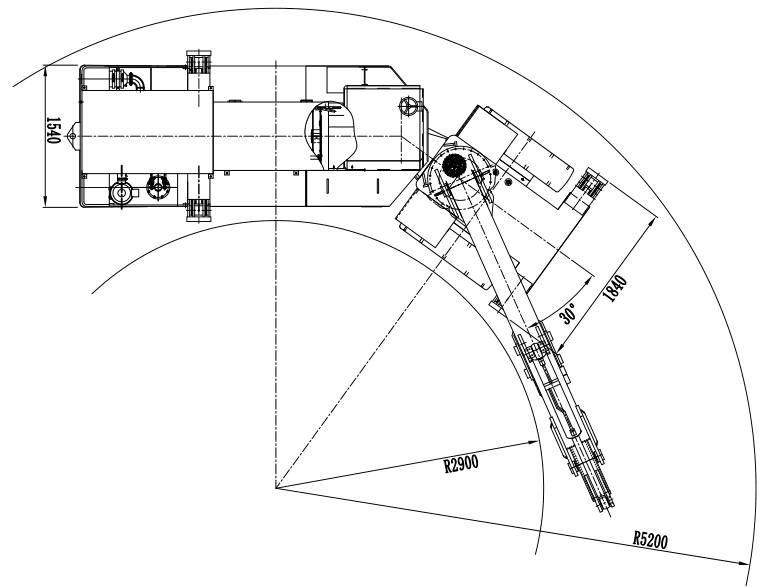

Drawing
Main Technical Parameters
|
Dimension |
8300*1840*2620mm |
? |
Climing Ability |
20° |
|
Rod Diameter |
105mm |
Beating Frequency |
400-800bpm |
|
|
Min. Ground Clearance |
250mm |
Oscilation |
±8° |
Main Configuration
Engine：Deutz BF4M1013C / 92kw / 2300rpm（F6L914 option）
Transmission：Torque converter DANA C270，Gearbox DANA RT20000
Axle：Rigid Planetary Drive Axle, NO-SPIN differential in front axle
Braking：Posi-stop
Images
