SJD-400 mobile rock splitter is widely used in various mines and tunnel construction projects to split large stones. The car body is narrow and the whole machine is low. It is especially suitable for underground mine operation. The frames are articulated with large steering angle and flexible steering. The transmission system is hydrostatic. Variable pump and variable motor are used in hydraulic system.
Chat With Us
Leave Message

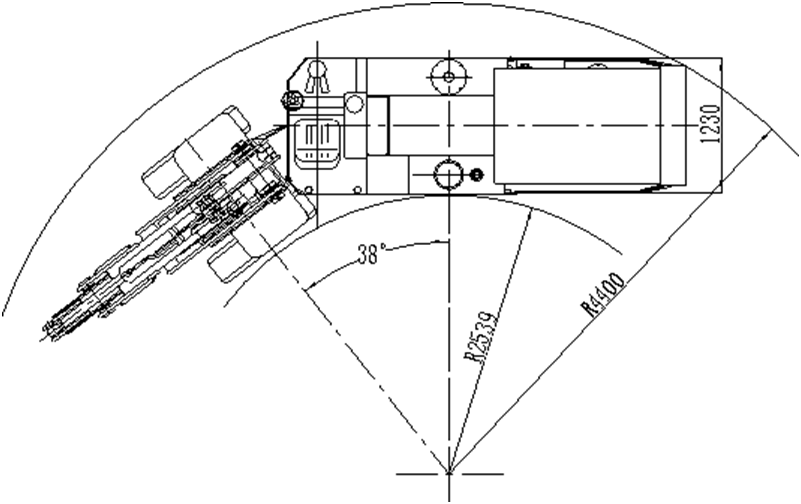

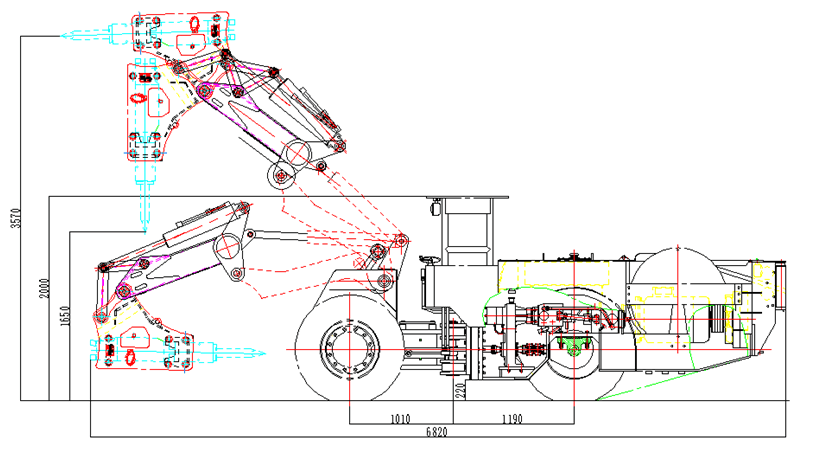

Drawing
Main Technical Parameters
|
Dimension |
6820*1230*2000mm |
? |
Climing Ability |
20° |
|
Rod Diameter |
85mm |
Beating Frequency |
400-800bpm |
|
|
Min. Ground Clearance |
220mm |
Oscilation |
±8° |
Main Configuration
Motor：Y225M-4 / 45kw / 1480rpm
Transmission：Hydrostatic
Axle：Rigid Planetary Drive Axle, NO-SPIN differential in front axle
Braking：Posi-stop

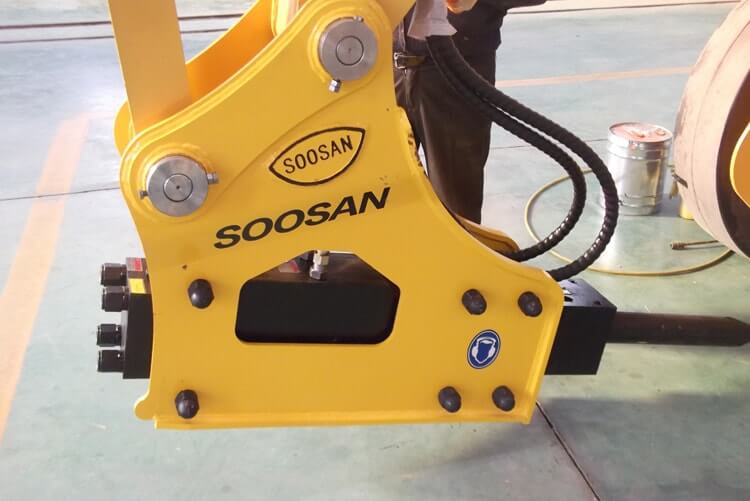

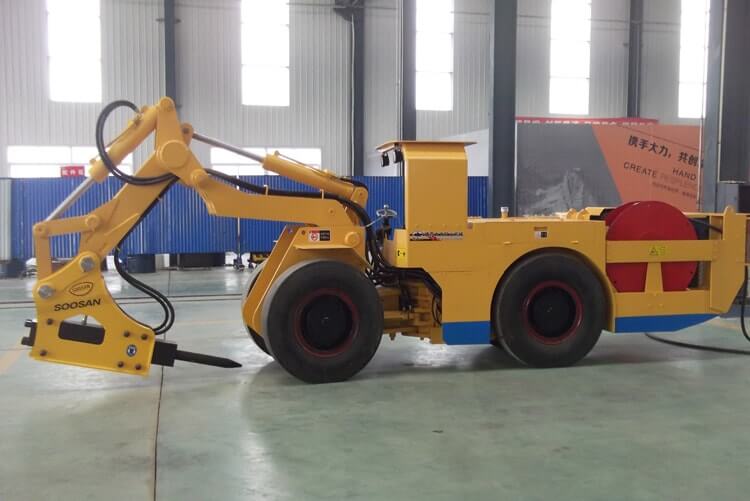

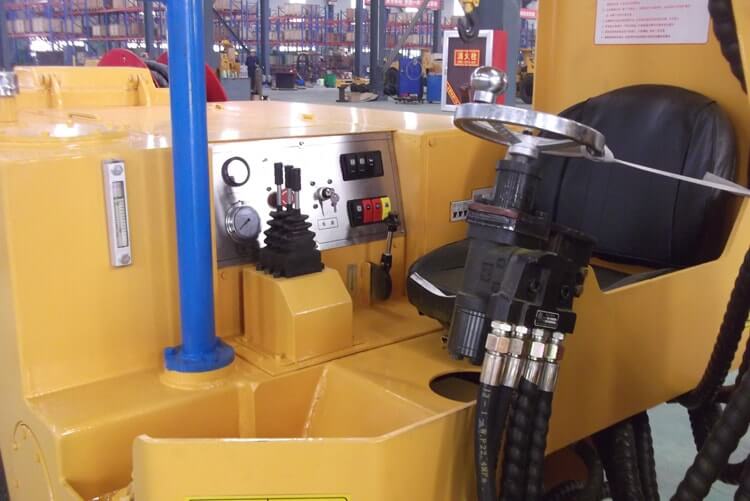

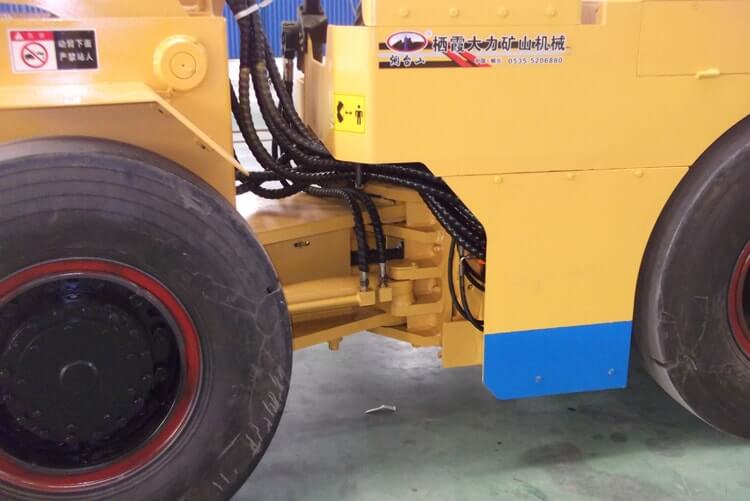

Images
